Images displayed in this gallery feature parts that were designed and machined by McChine for our internal use. Due to strict client confidentiality agreements, we are unable to show examples of actual work completed for customers.

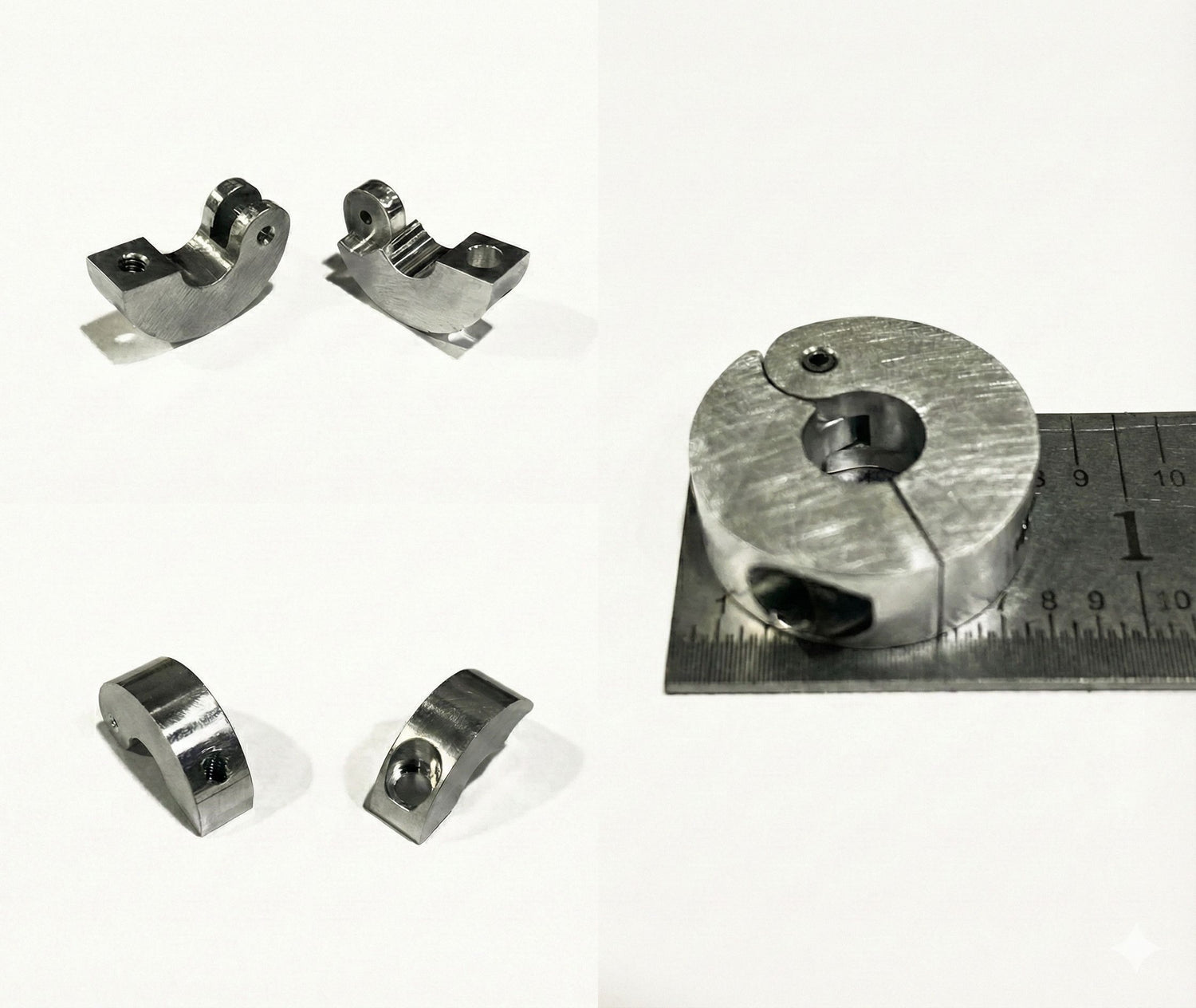

Collar
By designing around our 'picture frame and back bolt' fixture, we immediately bypassed the need to machine dedicated soft jaws or specialized tooling. This streamlined approach means we can move directly into small-lot production—such as a 5-assembly run—saving you both time and the cost of upfront fixturing.
Picture Frames
The empty 'picture frame' demonstrates the system's core capability: universal fixturing. It shows how different parts can be securely held and efficiently machined, whether as a single-piece prototype or patterned for a small production run.

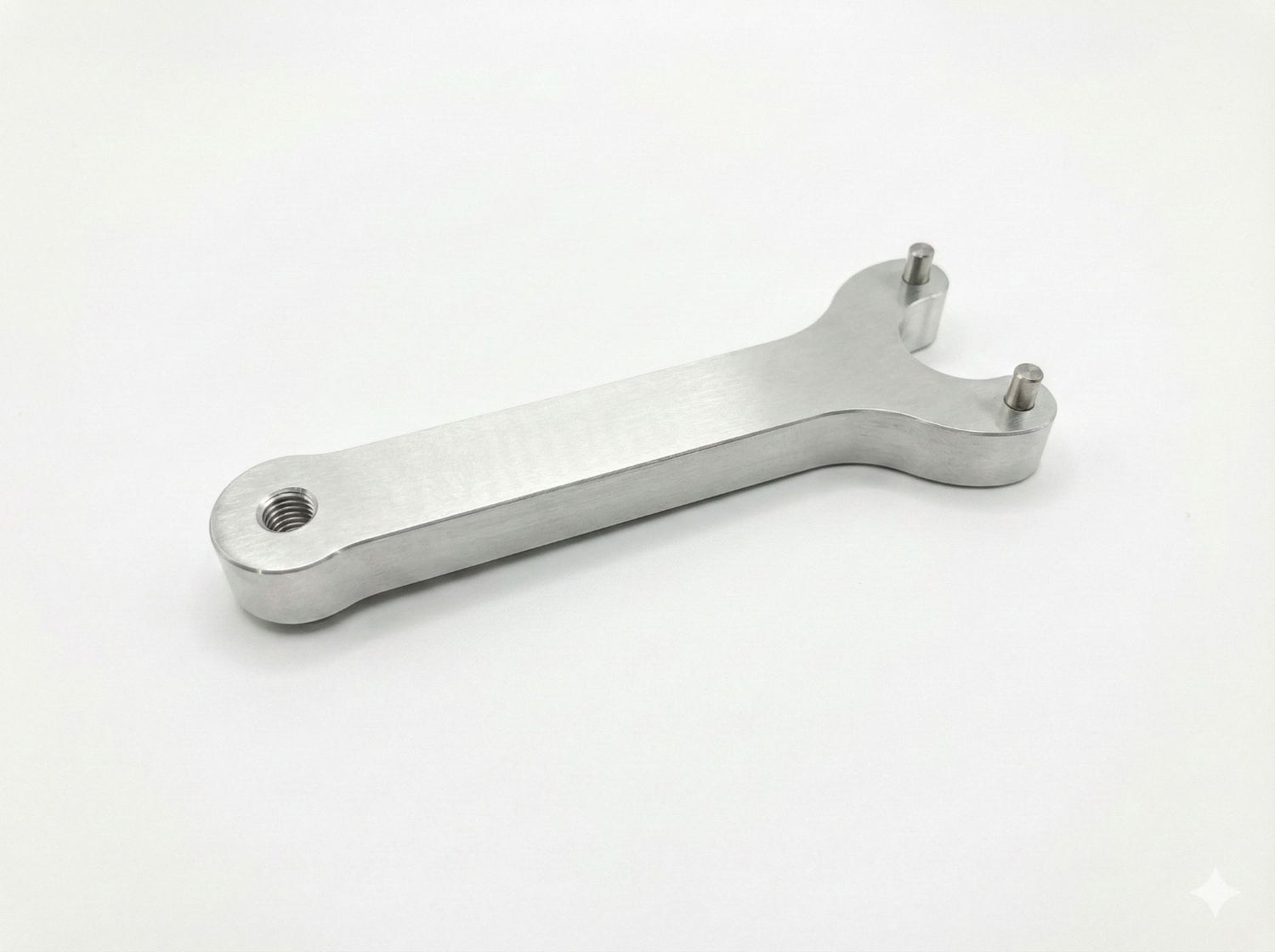

Spanner Wrench
Back Bolt Plate: Foundation for Custom Fixtures

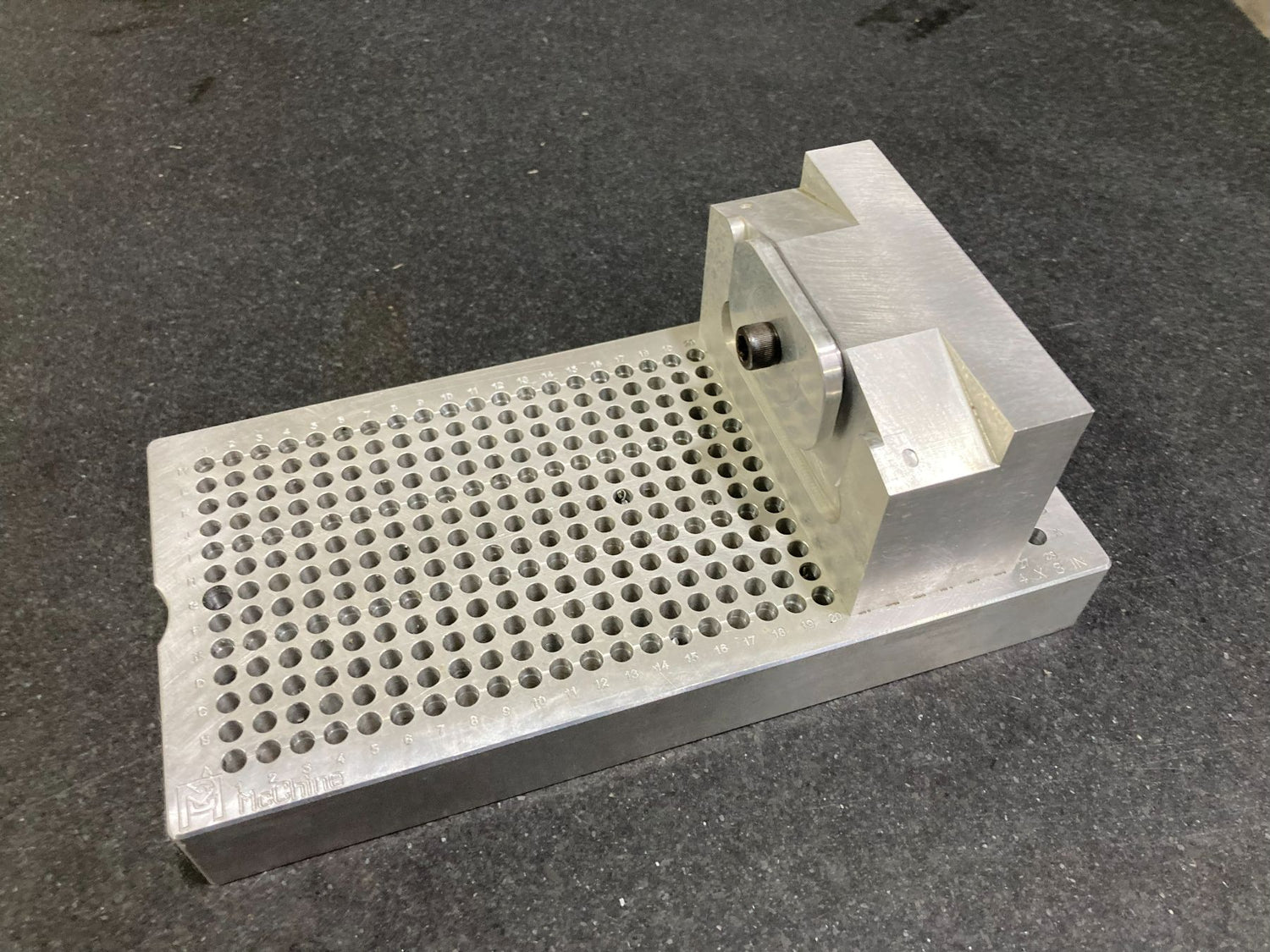

Our Back Bolt Fixture Plate acts as a robust, universal sub-base, as demonstrated by the custom fixture assembly mounted here. This one-off fixture was engineered to complete a critical operation (locating an inaccessible hole) but by leveraging our existing base, we avoided significant fixturing costs and maintained a highly stable machining platform
